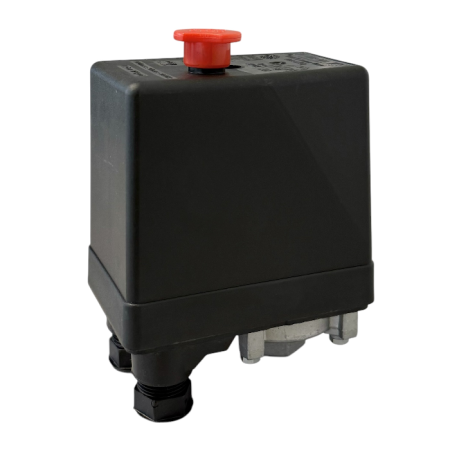

PES 12
Threephase
3 poles (N.C.)
MAX. cut-out pressure: 20 bar
MIN. working pressure: 1 bar
Cable glands: 2x PG13 / diameter 13 mm
380 Volt -50/60 Hz / 20 Amp MAX. IP 42
Acc. to EN 60947
Terminals: Clamps

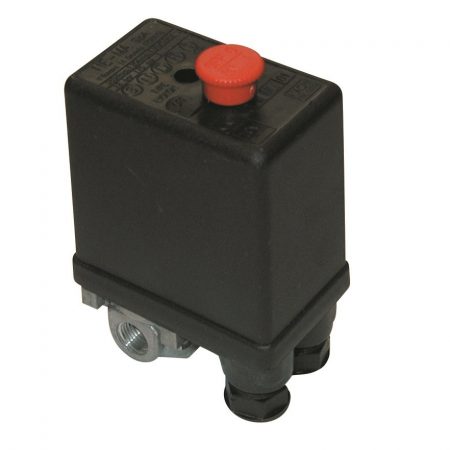

Art. 126/1N
| - Pressure: 2,5-12 BAR
- Factory pressure adjustment: 6-8 bar
- Flange: G.1/4" 1 WAY
- Unloader valve: E28C brass, screw fitting for plastic or copper pipe Ø, non-delayed
- Overload relay: Without overload relay
- Other details: Adjustable differential MIN. 2 bar, MAX. 3,5 bar. ON/OFF manual switch
| |
Art. 126/2N
| - Pressure: 2,5-12 BAR
- Factory pressure adjustment: 6-8 bar
- Flange: G.1/4" 4 WAYS
- Unloader valve: E28C brass, screw fitting for plastic or copper pipe Ø, non-delayed
- Overload relay: Without overload relay
- Other details: Adjustable differential MIN. 2 bar, MAX. 3,5 bar. ON/OFF manual switch
| |
