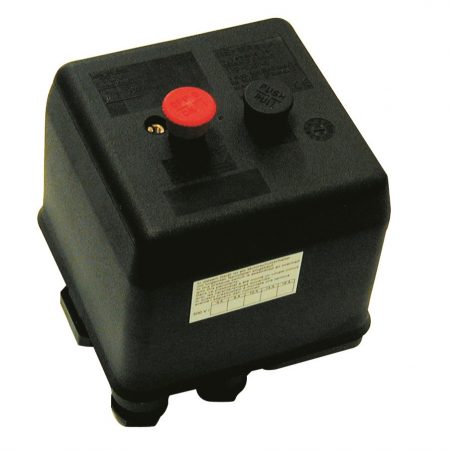

ET12
Threephase
3 poles (N.C.)
Max. cut-out pressure: 15 bar
Min. working pressure: 1,8 bar
Cable glands: 2x PG16 / diameter 13 mm
380 Volt -50/60 Hz / 20 Amp Max. IP 42
Acc. to EN 60947
Terminals: Clamps
Art. 126/5NT
| - Pressure: 4-12 bar
- Factory pressure adjustment: 8-10 bar
- Flange: G.1/4" 4 WAYS
- Unloader valve: E28C + IR brass non-delayed + Ø6 elbow push-in fitting
- Overload relay: 6,3-10,0 A
- Other details: Adjustable differential MIN. 2 bar, MAX. 3,5 bar. ON/OFF manual switch
| |
Art. 126/5NT 10-16
| - Pressure: 4-12 bar
- Factory pressure adjustment: 8-10 bar
- Flange: G.1/4" 4 WAYS
- Unloader valve: E28C + IR brass non-delayed + Ø6 elbow push-in fitting
- Overload relay: 10,0-16,0 A
- Other details: Adjustable differential MIN. 2 bar, MAX. 3,5 bar. ON/OFF manual switch
| |
Art. 126/5NT 13-18
| - Pressure: 4-12 bar
- Factory pressure adjustment: 8-10 bar
- Flange: G.1/4" 4 WAYS
- Unloader valve: E28C + IR brass non-delayed + Ø6 elbow push-in fitting
- Overload relay: 13,0-18,0 A
- Other details: Adjustable differential MIN. 2 bar, MAX. 3,5 bar. ON/OFF manual switch
| |
