Additional information

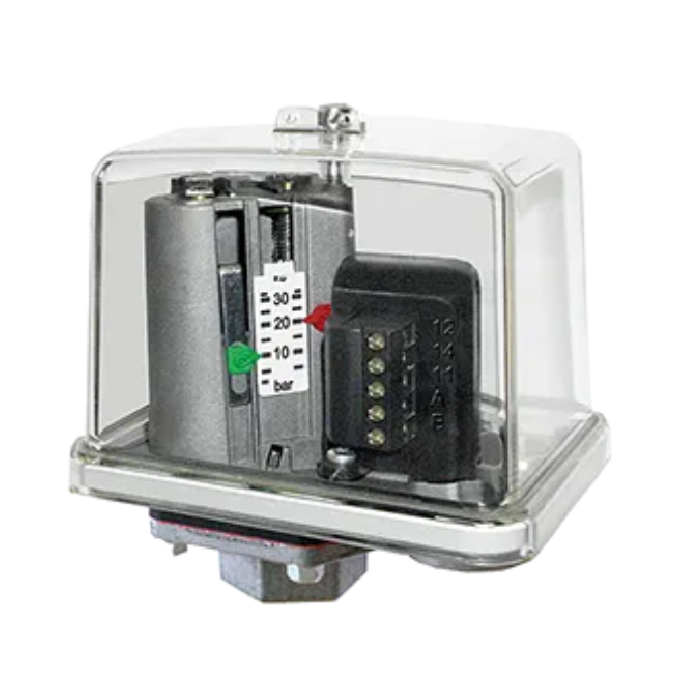

| item_name | Art. 127/54C |
|---|---|
| Pressure | 8 bar |
| Factory pressure adjustement | 2-6 bar |
| Flange | G.3/8" 1 WAY |
| Version | Screw terminals |
| Unloader valve | Without valve |
| Cable glands | Rubber grommet |
| Other details | NBR DIAPHRAGM |
MDR-F..H
1 SPDT= single-pole, double throw
Pressure range up to 250 bar
250 Volt. 50/60 Hz / 10 (4) Amp IP 54 / IP 65
UL approval optional
Scale for simple adjustments
Wide range of variations
Acc. to EN 60947
Die-cast aluminium flange model MDR-F..H
ON REQUEST plastic flange (in particular for use in water technology applications)
Art. 127/54C |
|
