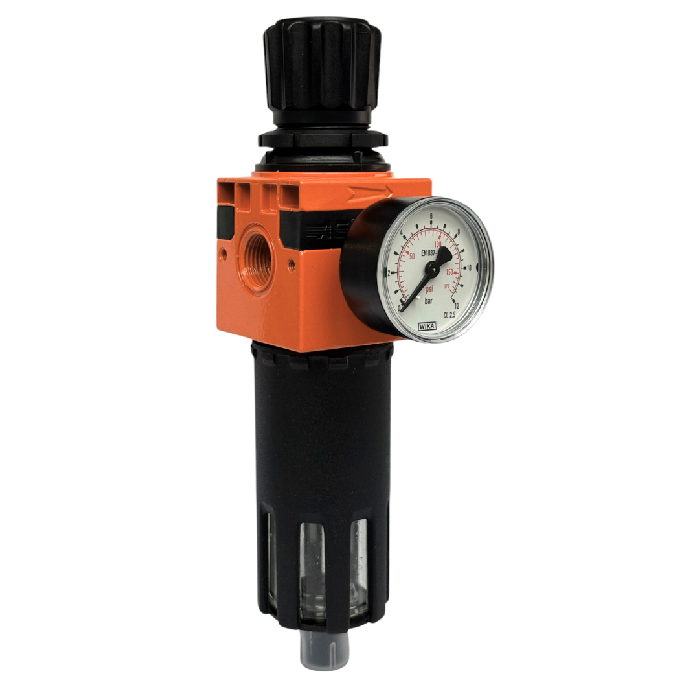

Filter-Regulator Adjustment knob with lock

Modular units with protective cup. Semi-automatic and automatic drain. Screw fixing directly on the unit body and manometer included in the package an in the price.

Art. 152/4

  • Size: 1/4" Micro 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 850 Nl/min
  • Cup capacity: 20 ml
  • Filtering: 20 µm
  • Drain: Semi-automatic
Send inquiry

Art. 152/4-A

  • Size: 1/4" Micro 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 850 Nl/min
  • Cup capacity: 20 ml
  • Filtering: 20 µm
  • Drain: Automatic
Send inquiry

Art. 152/4A

  • Size: 3/8" 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 2600 Nl/min
  • Cup capacity: 60 ml
  • Filtering: 20 µm
  • Drain: Semi-automatic
Send inquiry

Art. 152/4A-A

  • Size: 3/8" 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 2600 Nl/min
  • Cup capacity: 60 ml
  • Filtering: 20 µm
  • Drain: Automatic
Send inquiry

Art. 152/4B

  • Size: 1/2" 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 2600 Nl/min
  • Cup capacity: 60 ml
  • Filtering: 20 µm
  • Drain: Semi-automatic
Send inquiry

Art. 152/4B-A

  • Size: 1/2" 0÷16 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 2600 Nl/min
  • Cup capacity: 60 ml
  • Filtering: 20 µm
  • Drain: Automatic
Send inquiry

Art. 152/4C

  • Size: 1" 0÷12 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 4600 Nl/min
  • Cup capacity: 100 ml
  • Filtering: 20 µm
  • Drain: Semi-automatic
Send inquiry

Art. 152/4C-A

  • Size: 1" 0÷16 bar
  • Max inlet pressure: 18 bar
  • Flow rate at 6 bar: 4600 Nl/min
  • Cup capacity: 100 ml
  • Filtering: 20 µm
  • Drain: Automatic
Send inquiry
SKU: N/A Category:

Additional information

item_name

Art. 152/4, Art. 152/4-A, Art. 152/4A, Art. 152/4A-A, Art. 152/4B, Art. 152/4B-A, Art. 152/4C, Art. 152/4C-A

Size

1/4" Micro 0÷12 bar, 3/8" 0÷12 bar, 1/2" 0÷12 bar, 1/2" 0÷16 bar, 1" 0÷12 bar, 1" 0÷16 bar

Max inlet pressure

18 bar

Flow rate at 6 bar

850 Nl/min, 2600 Nl/min, 2600 Nl/min, 4600 Nl/min

Cup capacity

20 ml, 60 ml, 100 ml

Filtering

20 µm

Drain

Automatic, Semi-automatic
