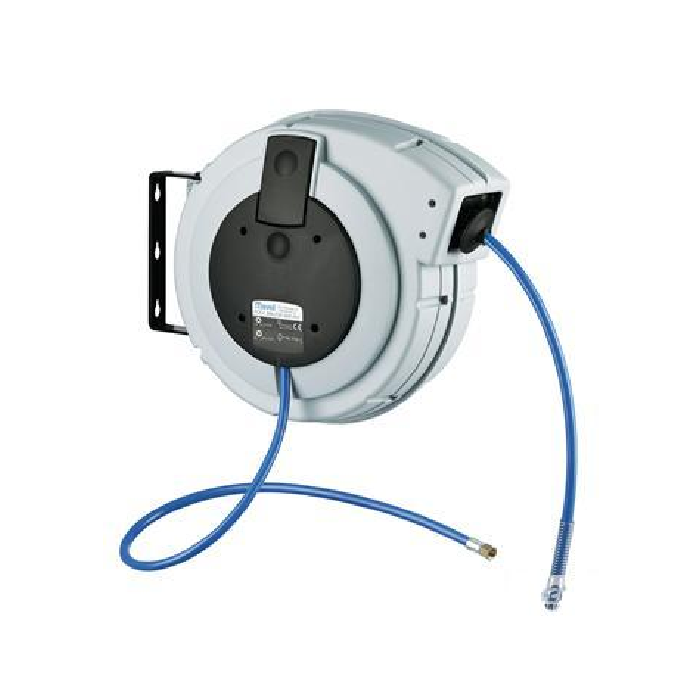

Suitable for professional environments, it can be fixed to the wall using the 180° adjustable brackets included in the product. All hoses are of high quality and equipped with spring fittings. The hose reel is provided with an automatic device to stop the hose at the desired length, slow rewind for greater safety, and an internal mechanism to prevent jams during both laying and automatic rewinding of the hose. Compliant with CE standards.
Art. 800/3 |
|
Art. 800/3B |
|
Art. 800/3C |
|
Art. 800/4 |
|
Art. 800/5 |
|
Art. 800/5A |
|
Art. 800/6 |
|
Art. 800/6A |
|
| item_name | Art. 800/3, Art. 800/3B, Art. 800/3C, Art. 800/4, Art. 800/5, Art. 800/5A, Art. 800/6, Art. 800/6A |
|---|---|
| Hose Ø | 6 x 8, 6 x 10, 8 x 12, 10 x 15 |
| Hose length | 5+1 mt, 12 mt, 9 mt, 15 mt, 8 mt, 14+1 mt, 20 mt |
| Hose material | Polyurethane |
| Inlet | 1/4" F, 3/8" F |
| Outlet | 1/4" M, 3/8" M |
| Fluid | Air, Air – Water |
| Max pressure | 10 bar, 15 bar |
| Max Temperature | -, 40°C |
| Weight | 1,2 kg, 3,4 kg, 4,1 kg, 5,1 kg, 3,9 kg, 5,6 kg, 8,3 kg |
