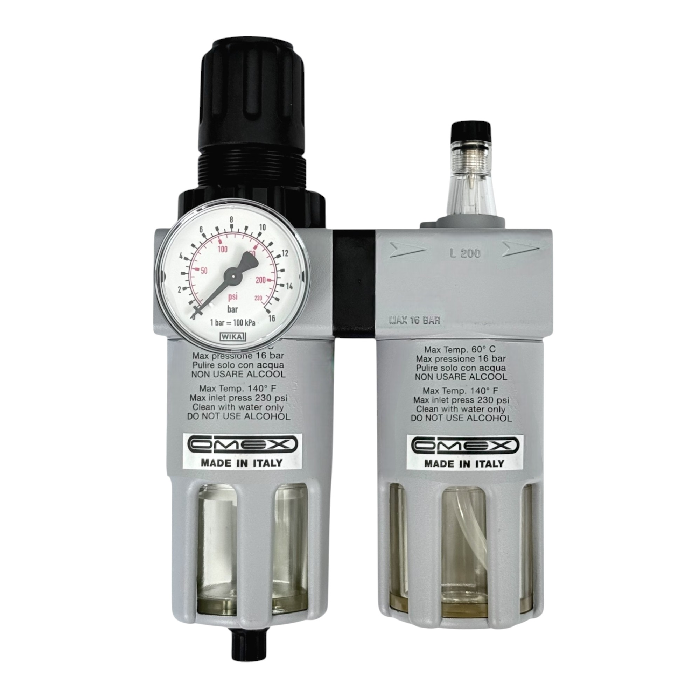

Filter – Regulator – Lubricator

Modular units with protective cup. Semi-automatic and automatic drain. Wall mounting bracket and manometer included in the package and in the price.

Art. 192/2

Size: 1/4" Micro 0÷10 bar
Max inlet pressure: 12 bar
Flow rate at 6 bar: 1800 Nl/min
Filtering: 20 µm
Drain: Semi-automatic

Art. 192/2-A

Size: 1/4" Micro 0÷10 bar
Max inlet pressure: 12 bar
Flow rate at 6 bar: 1800 Nl/min
Filtering: 20 µm
Drain: Automatic

Art. 197/1

Size: 3/8" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 5000 Nl/min
Filtering: 20 µm
Drain: Semi-automatic

Art. 197/1-A

Size: 3/8" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 5000 Nl/min
Filtering: 20 µm
Drain: Automatic

Art. 197/2

Size: 1/2" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 5000 Nl/min
Filtering: 20 µm
Drain: Semi-automatic

Art. 192/2-A

Size: 1/2" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 5000 Nl/min
Filtering: 20 µm
Drain: Automatic

Art. 197/2A

Size: 1" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 8000 Nl/min
Filtering: 20 µm
Drain: Semi-automatic

Art. 197/2A-A

Size: 1" 0÷16 bar
Max inlet pressure: 16 bar
Flow rate at 6 bar: 8000 Nl/min
Filtering: 20 µm
Drain: Automatic

SKU: N/A Category: MOUNTING WITH BRACKET

Additional information

Additional information

item_name	Art. 192/2, Art. 197/1, Art. 197/2, Art. 197/2A, Art. 192/2-A, Art. 197/1-A, Art. 197/2-A, Art. 197/2A-A
Size	1/4" Micro 0÷10 bar, 3/8" 0÷16 bar, 1/2" 0÷16 bar, 1" 0÷16 bar, 1" 0÷16 bar
Max inlet pressure	12 bar, 16 bar
Flow rate at 6 bar	1800 Nl/min, 5000 Nl/min, 5000 Nl/min, 8000 Nl/min
Filtering	20 µm
Drain	Semi-automatic, Automatic
